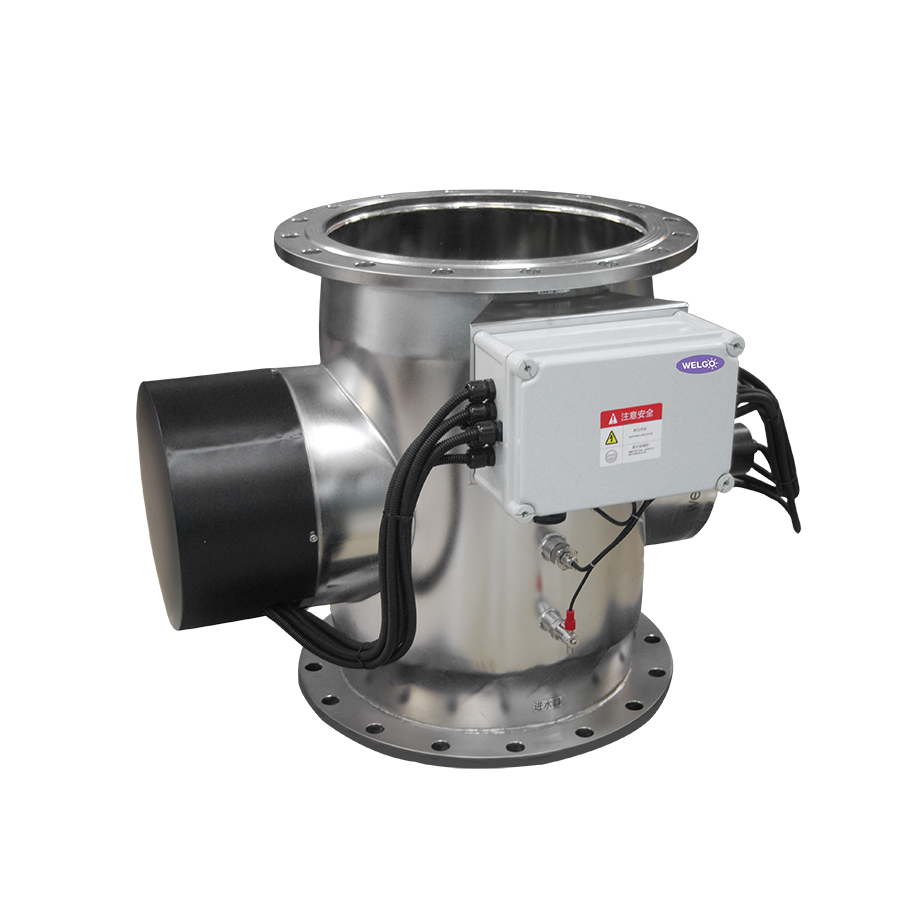

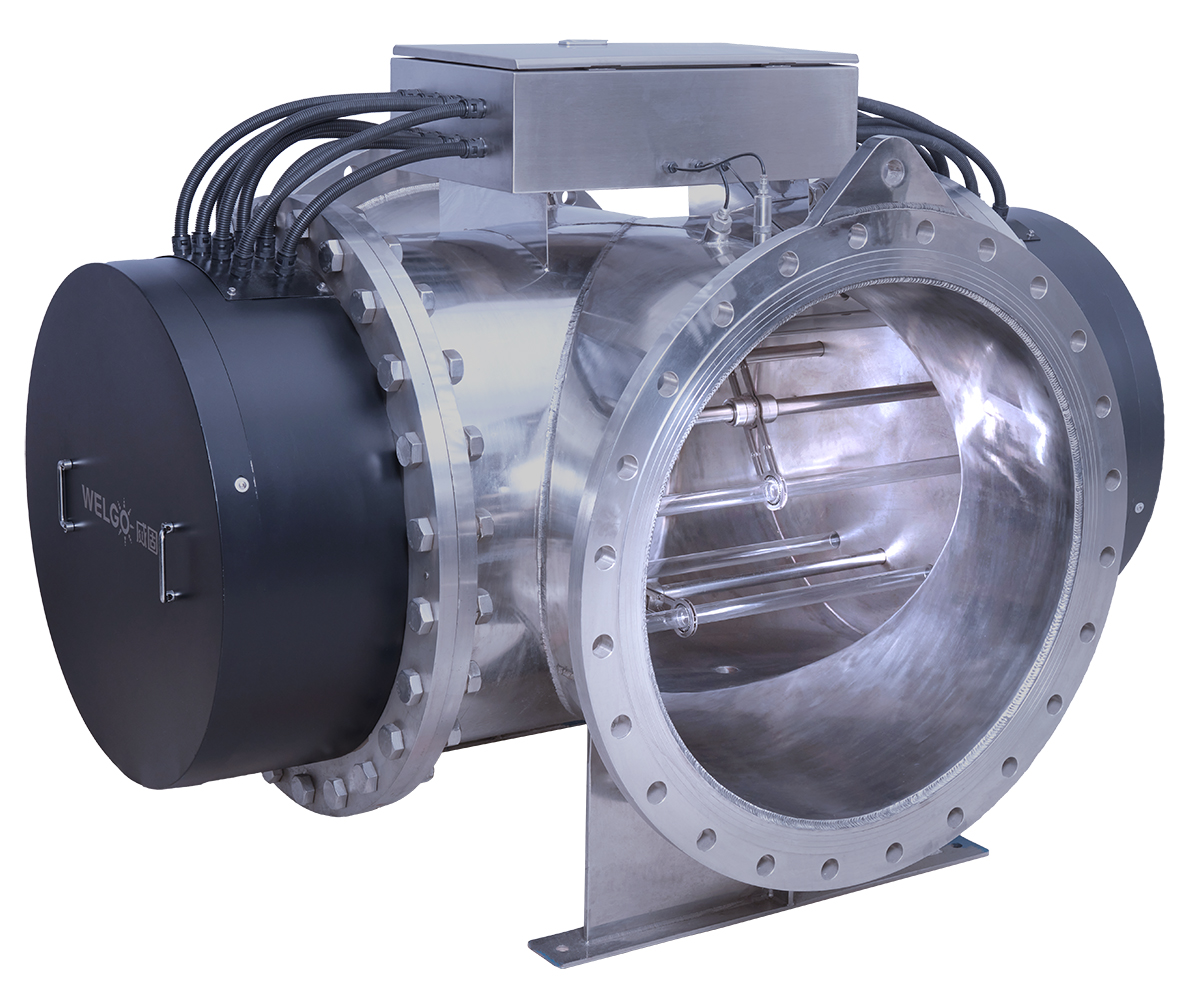

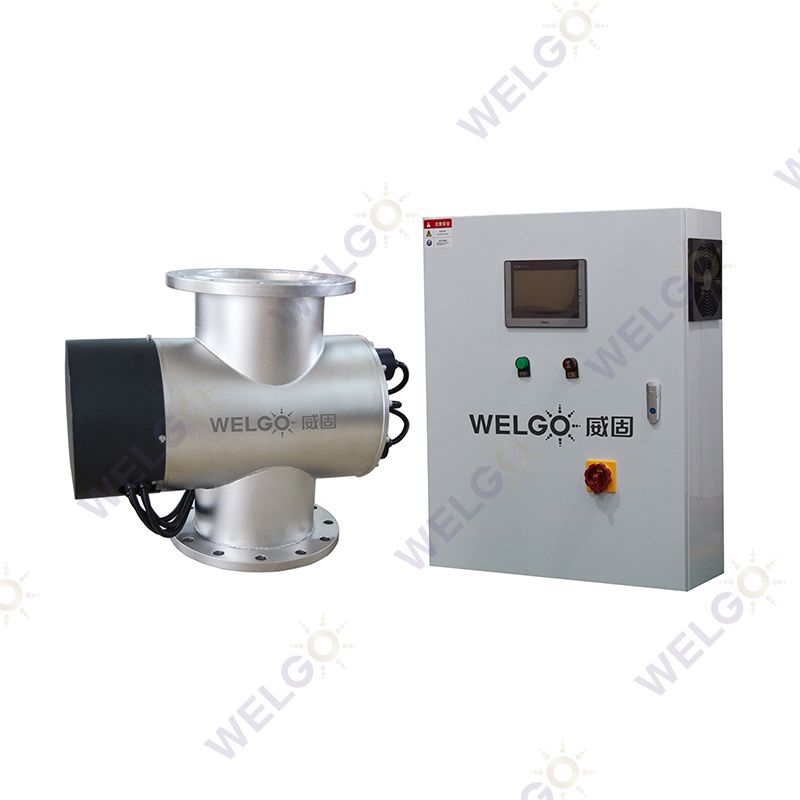

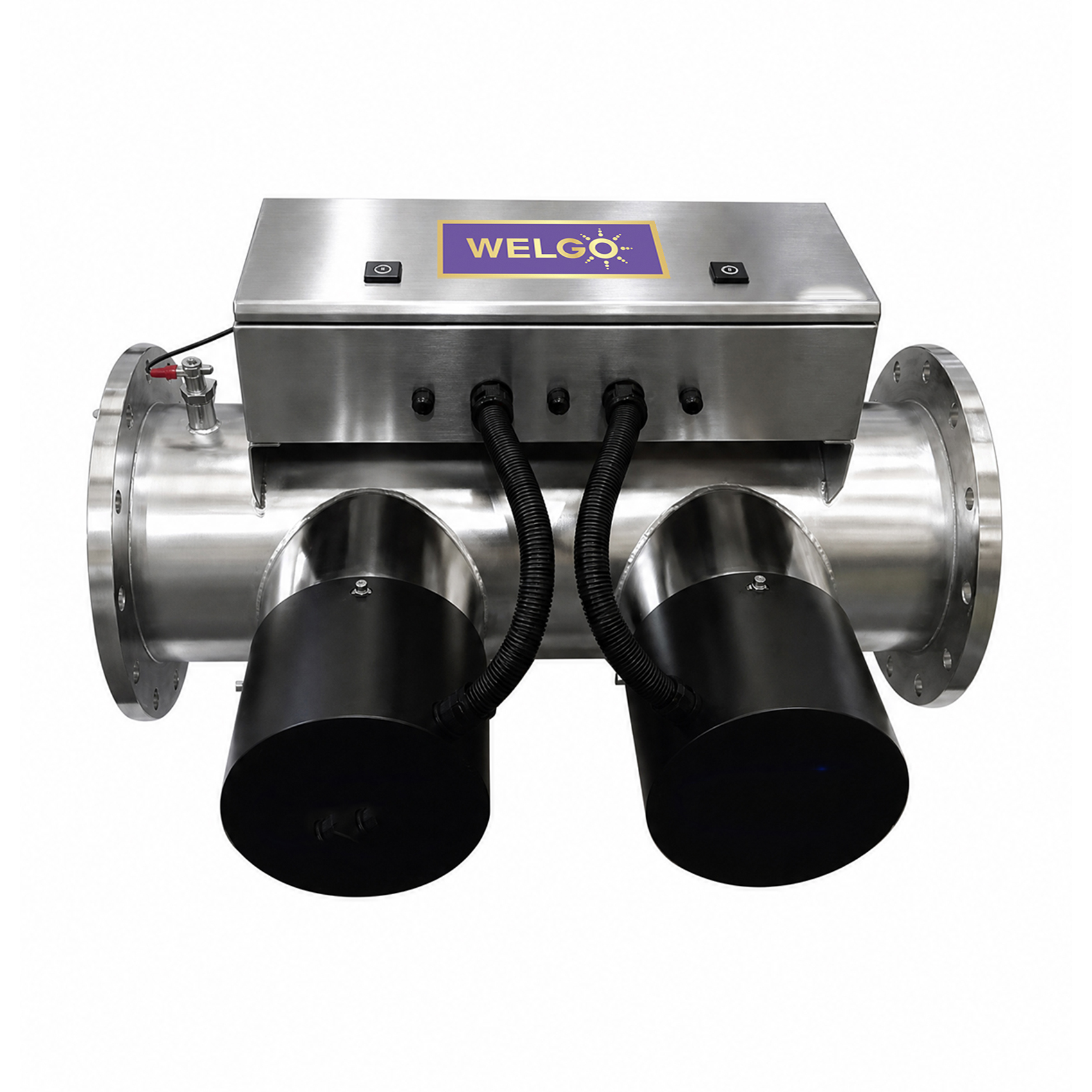

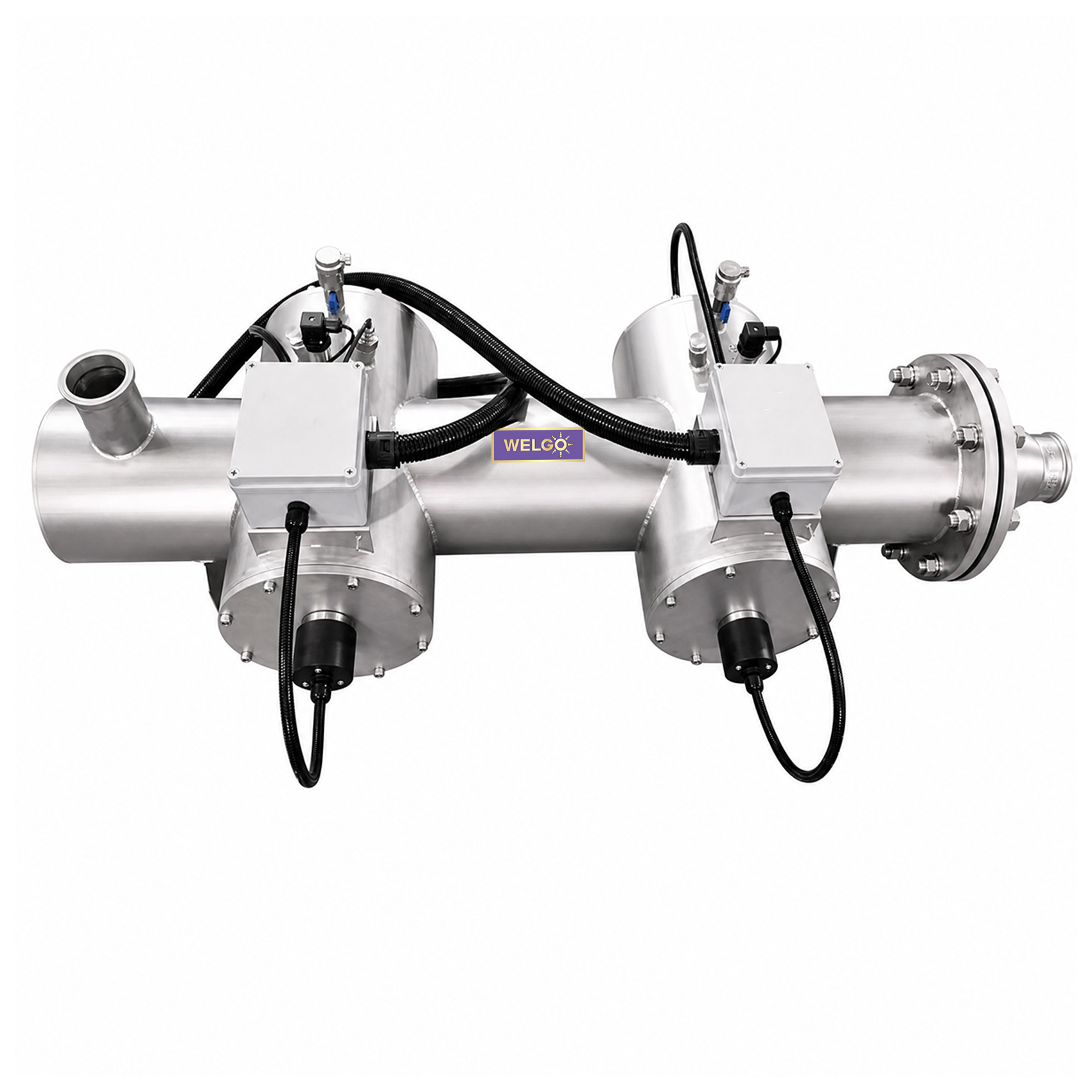

Medium Pressure Lamps UV Disinfection System, Series MPUV
The MPUV series Medium Pressure UV adopting the latest Medium-Pressure lamp technology and automatically quartz sleeves cleaning system, is optimized for applications high-power densities or high flowrate required.
* Industrial Water;
* Drinking water;
* Swimming Pool and SPA;
* Aquaculture;
* Waste water;
* Optimized for high-flow disinfection where space and energy efficiency are critical;
* Compact reactor design with high lamp power density and minimal footprint;

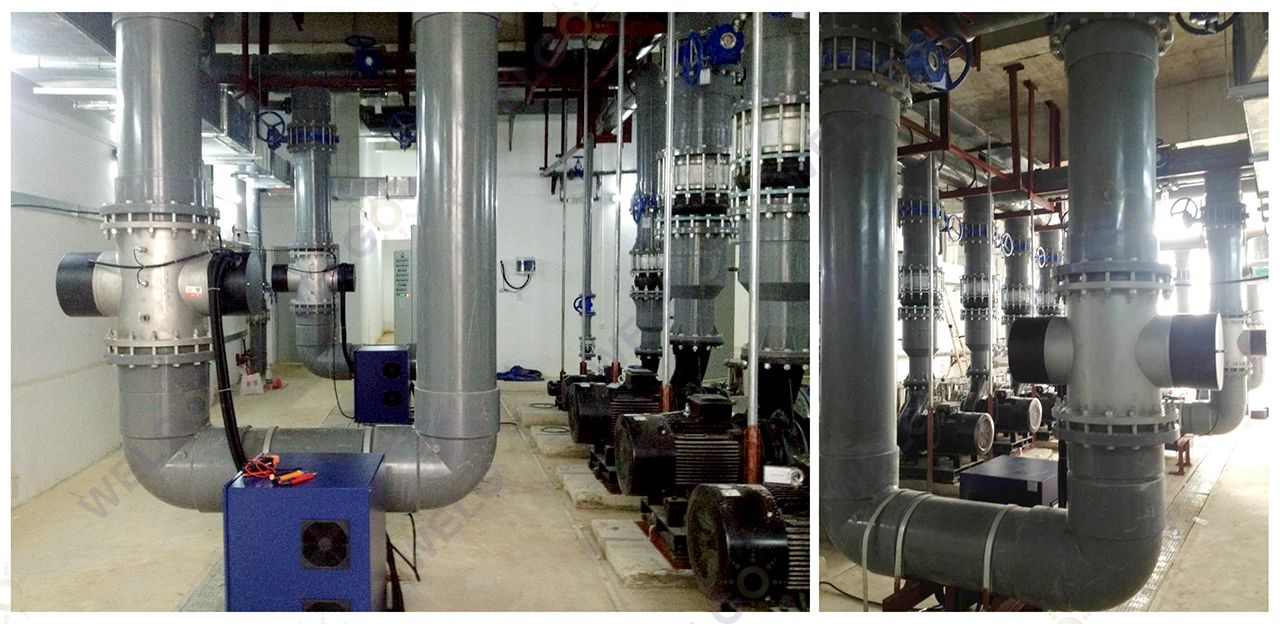

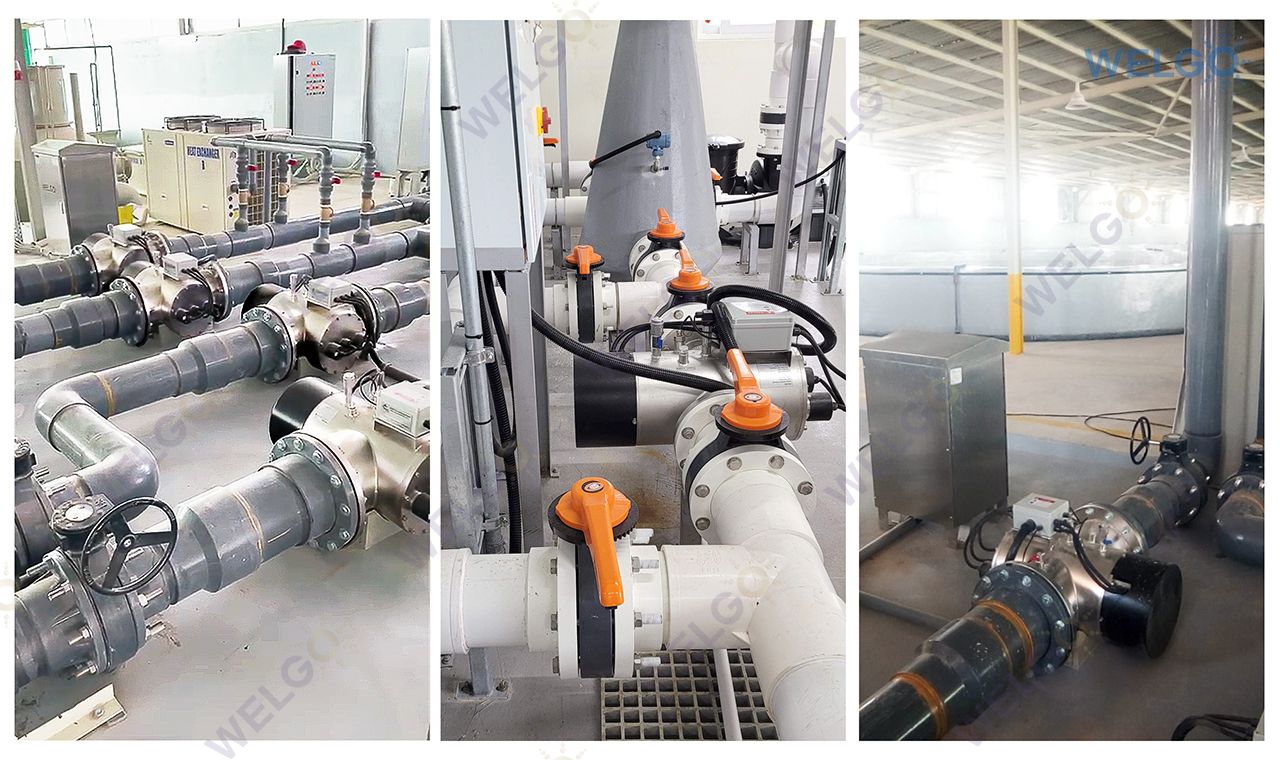

* Easily integrated in complex environments-suitable for vertical and horizontal installation;
* Long as 7500 hours lamp lifetime expected (under normal operation condiction);
* Complete control with PLC and HMI;
* Electronic ballasts with 50%-100% power output adjustable for each lamp;
* Automatic quartz cleaning with flexible 316L or PVDF wiper;
* Simplified maintenance and installation, single-sided access with no special tools required.

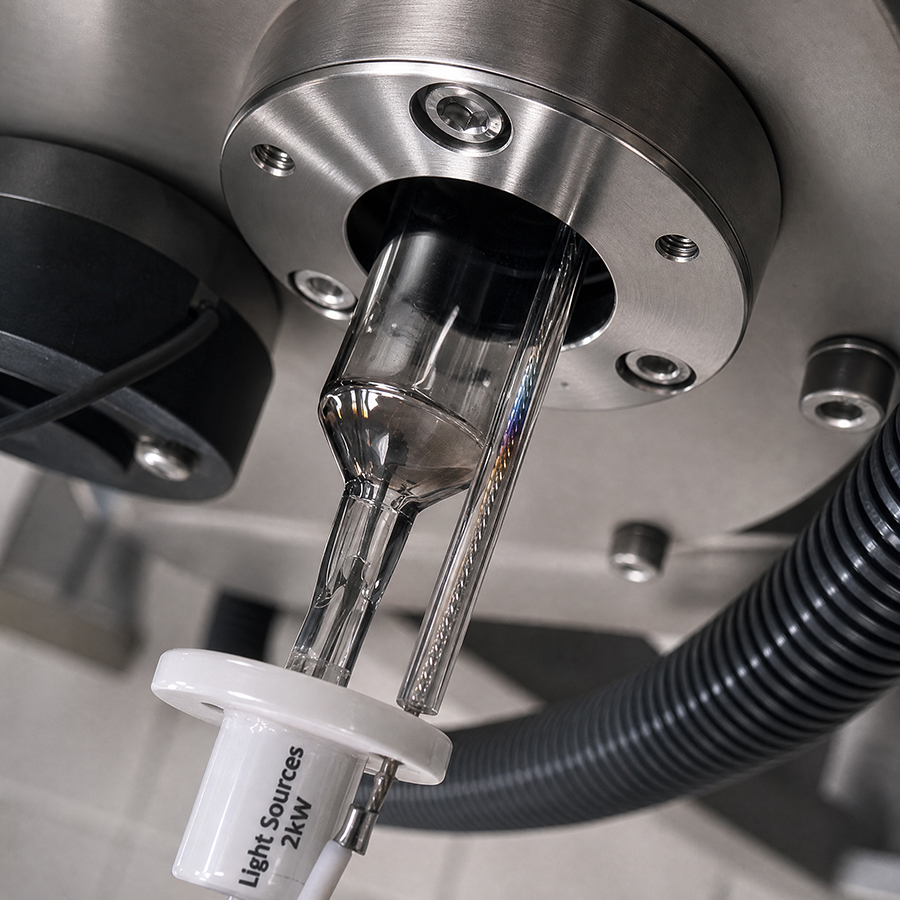

| UV LAMPS AND BALLASTS | |
| Type of UV lamps | Medium-Pressure lamps, made in USA, Europe. |
| Rated Lamp Life |
5000-7500 hours; |
| Ballasts | High efficient electronic ballast with variable output 50%-100%. |
| CONTROLLING CABINET | |
| Standard Functions |
PLC controller and toutch operated displayer; Output signal of alarm; Flashing buzzer of lamp fault; |
| Material | Carbone Steel . |
| Operation Condictions | Ambient temperature 5-40 0C, relative humidity less than 85% non-condensing |
| Optional Functions |
304SS or 316SS Cabinet; Communication: RS485, Ｍodbus. Remote operation mode. UV lamps automatically turn on/off in accordance with signal of water flow switch sensor. |
| UV CHAMBER | |
| Material | Stainless Steel 316 (2205 Duplex SS, Titanium Optional); |
| Surface Treatment Process |
Inner Surface: Mechanical Polishing; Exterial Surface: Sandblasting. Electro-Polishing for Optional. |

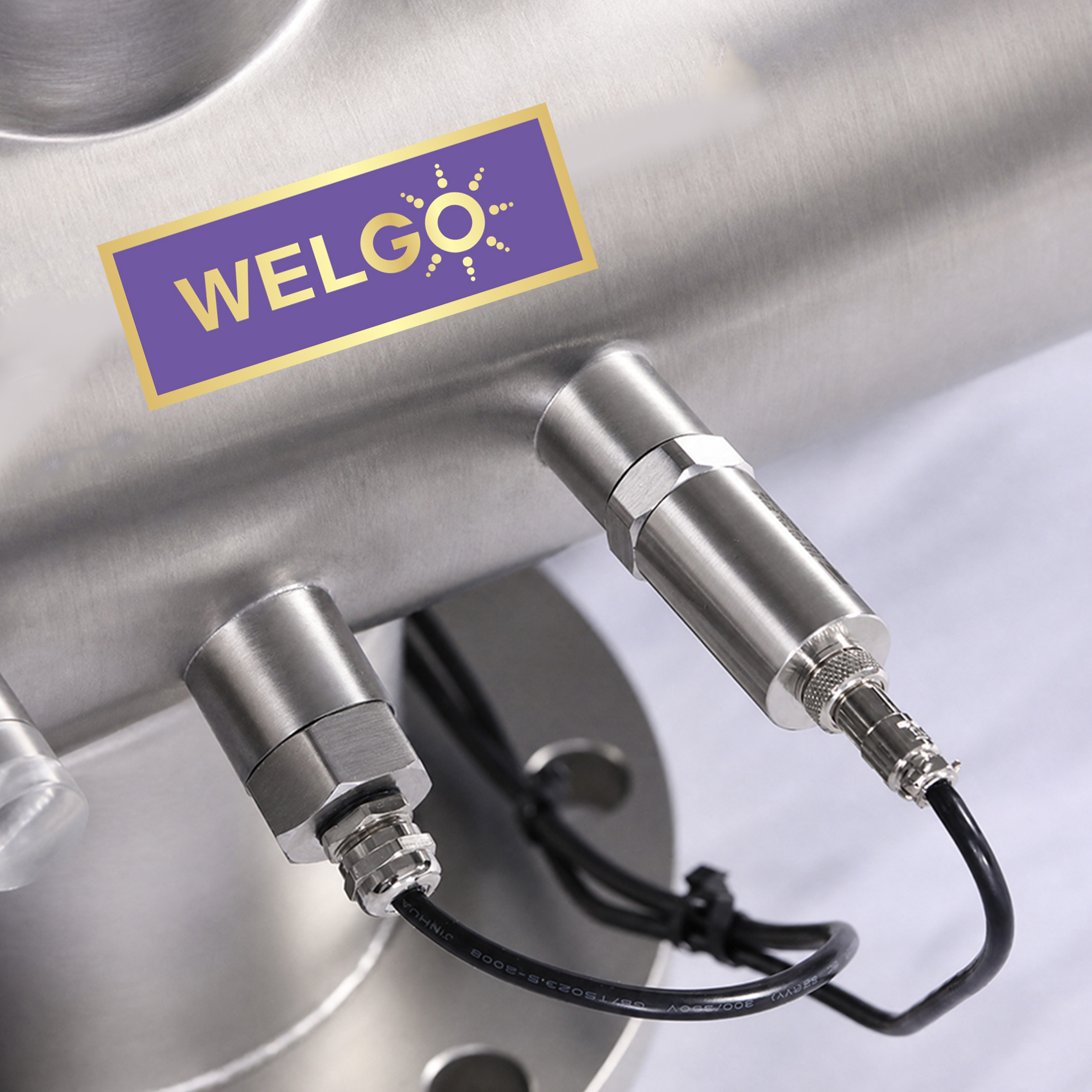

| Wiper | YES, Automatically Quartz Sleeves Cleaning System with 316L or PVDF wiper. |
| Maxmium Operation Pressure | 0.7MPa (7Bar). |
| Operation Condiction | Water Temperature 5-45 0C recommended. |
| Optional Functions |
UV Intensity Sensor; Water Flow Switch; Air Vent; Water Temperature Sensor. |
| Model | Maximum Flow Rate (m³/hr) |
Power Supply (Vac, 50/60Hz) |
Lamps Power (W) |
Inlet / Outlet (Flange) |

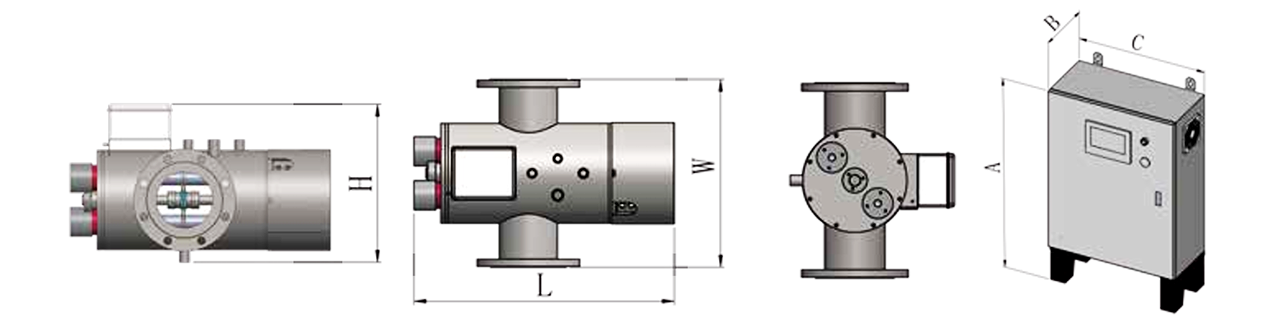

Chamber Dimmensions (mm) | Cabinet Dimmensions (mm) | |||||
| 40mJ/cm2 | 60mJ/cm2 | L | W | H | A | B | C | ||||
| MPUV-0.5KW-1 | 22 | 17 | 220V | 0.5KW*1 | DN100 | 560 | 419 | 372 | 693 | 179 | 513 |
| MPUV-1.0KW-1 | 48 | 36 | 220V | 1.0KW*1 | DN100 | 600 | 419 | 372 | 893 | 285 | 617 |
| MPUV-2.0KW-1 | 115 | 80 | 380V, 3ph | 2.0KW*1 | DN150 | 700 | 419 | 375 | 893 | 285 | 617 |
| MPUV-2.0KW-2 | 200 | 145 | 380V, 3ph | 3.0KW*1 | DN150 | 700 | 419 | 377 | 893 | 285 | 617 |
| MPUV-3.0KW-1 | 275 | 200 | 380V, 3ph | 2.0KW*2 | DN200 | 710 | 543 | 432 | 893 | 285 | 718 |
| MPUV-3.0KW-2 | 420 | 300 | 380V, 3ph | 3.0KW*2 | DN250 | 710 | 595 | 483 | 893 | 285 | 718 |
| MPUV-3.0KW-3 | 660 | 475 | 380V, 3ph | 3.0KW*3 | DN300 | 710 | 585 | 516 | 1200 | 320 | 850 |
| MPUV-3.0KW-4 | 920 | 660 | 380V, 3ph | 3.0KW*4 | DN350 | 780 | 585 | 572 | 1200 | 320 | 850 |
| MPUV-3.0KW-5 | 1180 | 850 | 380V, 3ph | 3.0KW*5 | DN350 | 780 | 585 | 572 | 1123 | 543 | 600 |
| MPUV-3.0KW-6 | 1500 | 1050 | 380V, 3ph | 3.0KW*6 | DN400 | 870 | 585 | 626 | 1123 | 543 | 600 |
| MPUV-3.0KW-8 | 2000 | 1500 | 380V, 3ph | 3.0KW*8 | DN400 | 915 | 1000 | 712 | 1750 | 550 | 1000 |
NOTE:
1. Maximum flowrate is based on UV 253.7nm transmittacne of water no less than 95%@10mm.
2. UV dosage 60mJ/cm2 is recommended for swimming pool recycling water disinfeciton.
3. All dimmensions are approximate for clearance purposes only. Specifications may change without notification in advanced.
