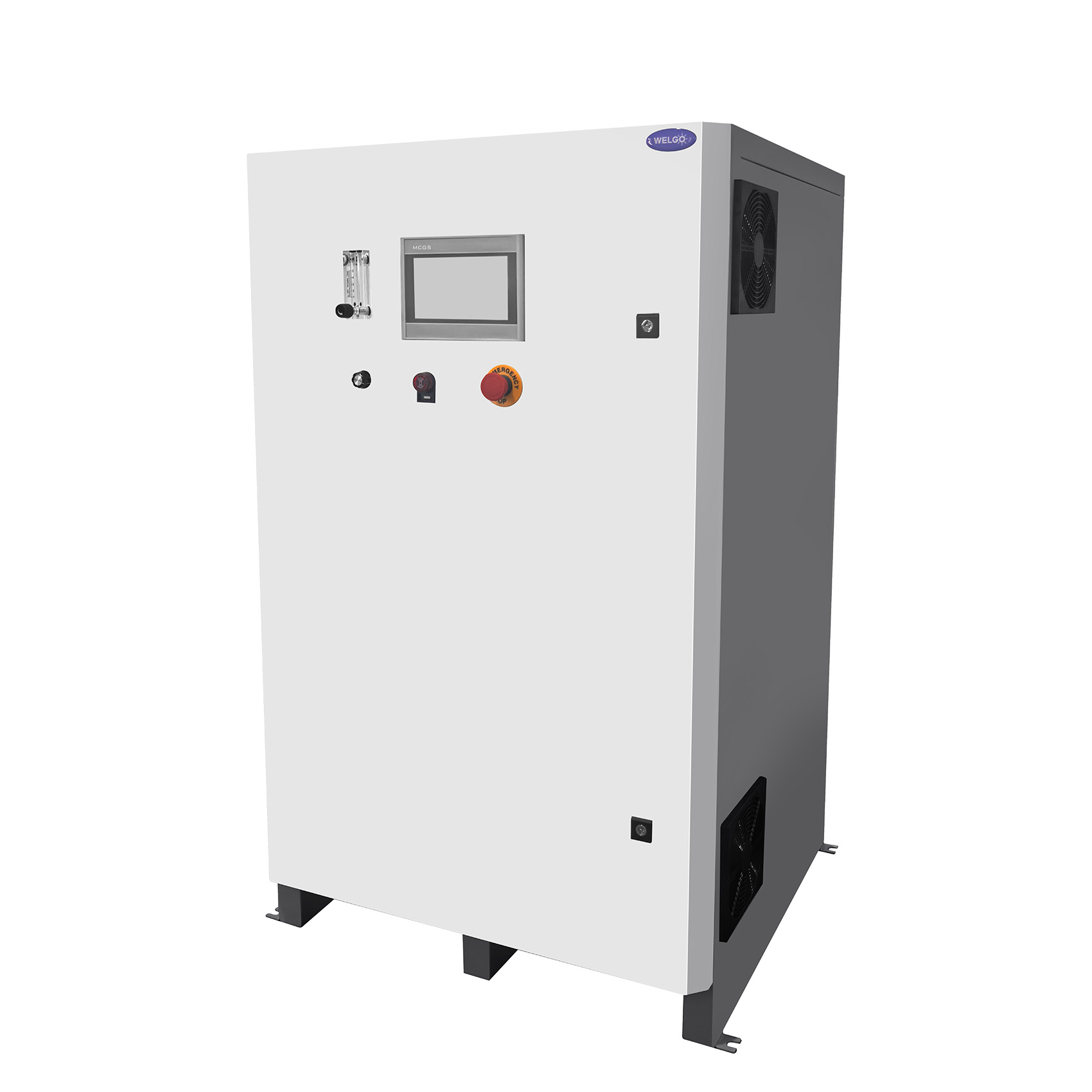

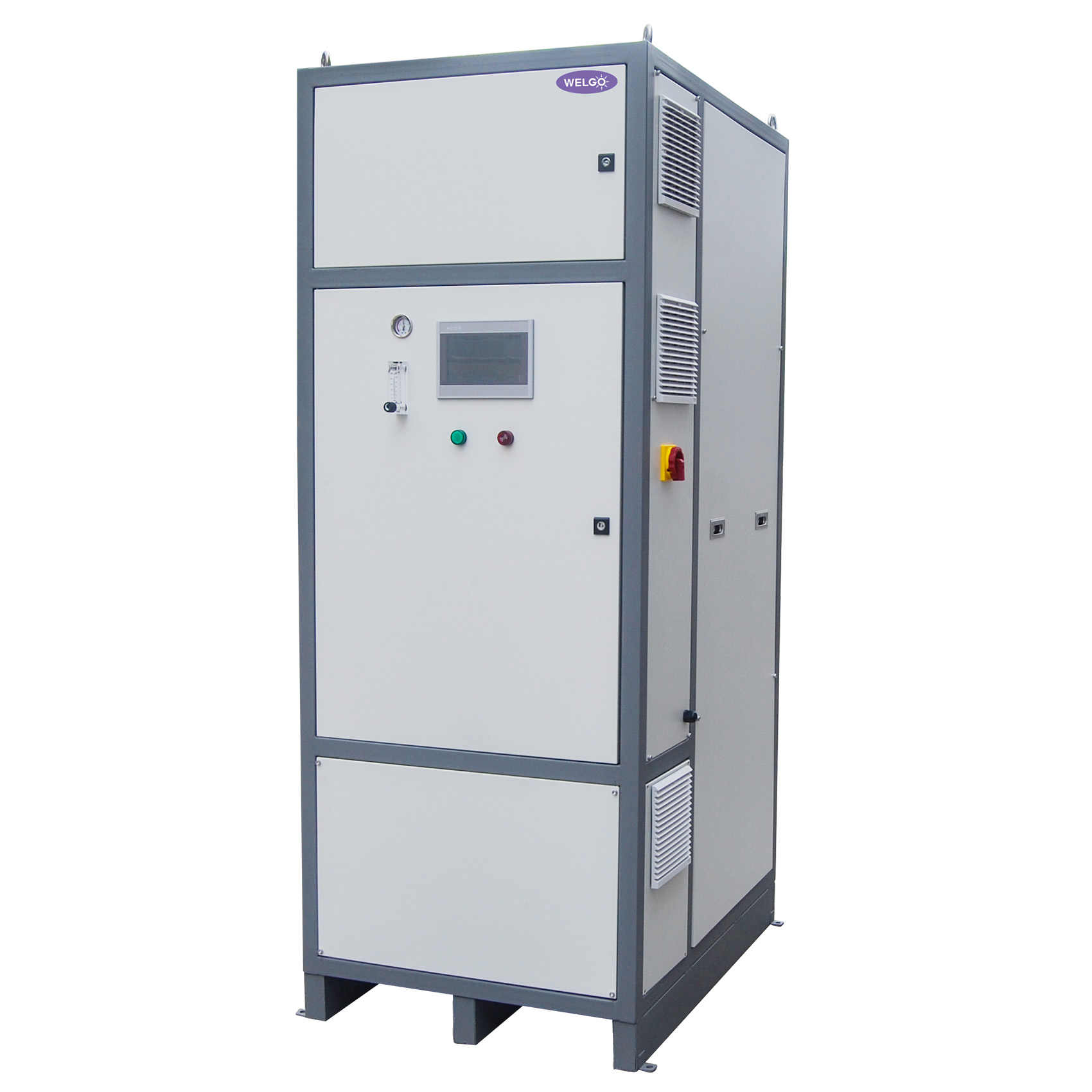

UV-Ozone AOP System, Disinfection And Purification for Swimming Pool
AOPs are employed for the treatment of drinking water, swimming pool, wastewater, and process water in industries. The future of AOPs may holds the key to a cleaner, more sustainable environment.
Product Features
* Amalgam UV lamps, with rated life 16,000 hours.
* Built-in PSA oxygen concentrator, except for AOP60 or AOP120.
* Air-cooled titanium ceramic discharger for ozone generation.
* To avoid leakage, ozone gas is injected into water by negative pressure.
* Boosting pump, ozone injector and check valve mounted.
* An air vent is installed on the top of ozone mixing tank.
* Inlet and outlet are both on the back, convenient for connection.
* The cabinet panels are removable for easy maintenance.
* Multiple systems can be freely combined to form a larger scale.
|
Cabinet and Controlling System |
|
|
Standard function |
* Fault alarm * Indicators and hour accumulator for UV lamps * Ozone flow meter * Variable ozone output adjust * Independent switch for ozone generation * Local/Remote mode * Output of passive contact signal for equipment fault or in abnormal condition. * Input of passive contact signal for equipment running. |
|
Material |
Carbon steel |
|
Cooling |
forced air by cooling fans |
|
Operation condition |
ambient temperature 5-40℃, relative humidity <85% non-condensing |
|
Option |
* PLC controller+ touch operated displayer * Cabinet made by SS304 or SS316 * Water flow switch |
Technical Specifications
| MODEL | WG-AOP60 | WG-AOP120 | WG-AOP200 | WG-AOP300 | WG-AOP400 |
| Capacity of swimming pool, (m3) | 60 | 120 | 200 | 300 | 400 |
| Flow-Rate*1 , (m3/h) | 3-5 | 5-8 | 9-12 | 12-15 | 15-20 |
| Dimensions, (L*H*W,mm) | 860*830*1310 | 960*850*1350 | 700*1800*900 | 800*1950*1050 | 900*1950*1150 |
| Flange | DN50 | DN50 | DN65 | DN80 | DN80 |
| Electrical Specifications | |||||
| Voltages, (Vac,50/60Hz) | 220V | 220V | 380V, 3ph | 380V, 3ph | 380V, 3ph |
| Power, (W) | 1400 | 1600 | 1760 | 2030 | 2250 |
| UV Lamps | |||||
| Lamps Type |
Low Pressure High Output( LPHO) UV Lamp; Amalgam UV Lamp. |
||||
| Rated Life |
10000-12000 Hours for Low Pressure High Output( LPHO) UV Lamp; 10000-12000 Hours for Amalgam UV Lamp. |
||||
| Ozone | |||||
| Discharger | Air-cooled corona discharge. | ||||
| Output, (g/h) | 1 | 2 | 10 | 15 | 20 |
| Variable output | Manually adjust the flow rate and concentration of ozone gas. | ||||
| PSA oxygen concentrator | No | No | Yes | Yes | Yes |
| Dosing Method | Negative pressure mixing by ozone injector. | ||||
| Boosting Pump | Yes, Stainless Steel boosting pump is integrated. | ||||
| Reactor | |||||
| Material | SS304, SS316 or SS316L | ||||
| Drain | DN25,thread | ||||
| Air Vent | DN20,thread | ||||
| Operation Conditions | |||||
| Ambient Conditions | Ambient temperature 5-40℃, relative humidity <85% non-condensing | ||||
| Water Temperature | 5℃-40℃ | ||||
| Operation Pressure | 0.1-0.4MPa | ||||
Notes:
* The flow rate is suitable for applications that require disinfection while also improving water quality by decomposing organic matter (such as combined chlorine and odor) in water. The water flow entering the AOP system can be controlled by adjusting the main water pipe valve.
* The flow rate is a suggested value.
* Scale expansion can be achieved by combining AOP300s or AOP400s to accommodate larger swimming pools or for better water quality.

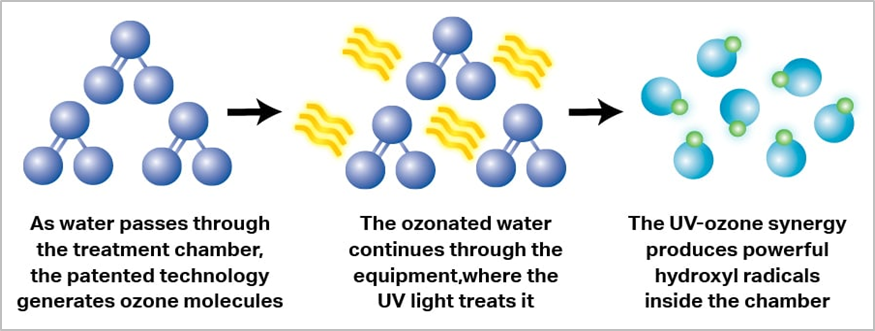

In order to generate AOP, both ozone and germicidal UV are required. When ozone passes through the UV chamber it converts to a hydroxyl free radical, resulting in AOP. The more ozone molecules in the system, the more hydroxyl radicals are created. This makes the combination of UV and ozone the most powerful sanitizer available today, bringing us as close as is possible to a chemical free pool or spa.
Benefits of UV-Ozone AOP System for swimming pool sanitation
Many assume that “chemical” odor, red eyes and dry skin come from chlorine; however, it’s chloramines, the disinfection by-product (DBP) of chlorine reacting to sweat, lotions and other organic material. DBPs also can cause allergies, asthma and other health issues.

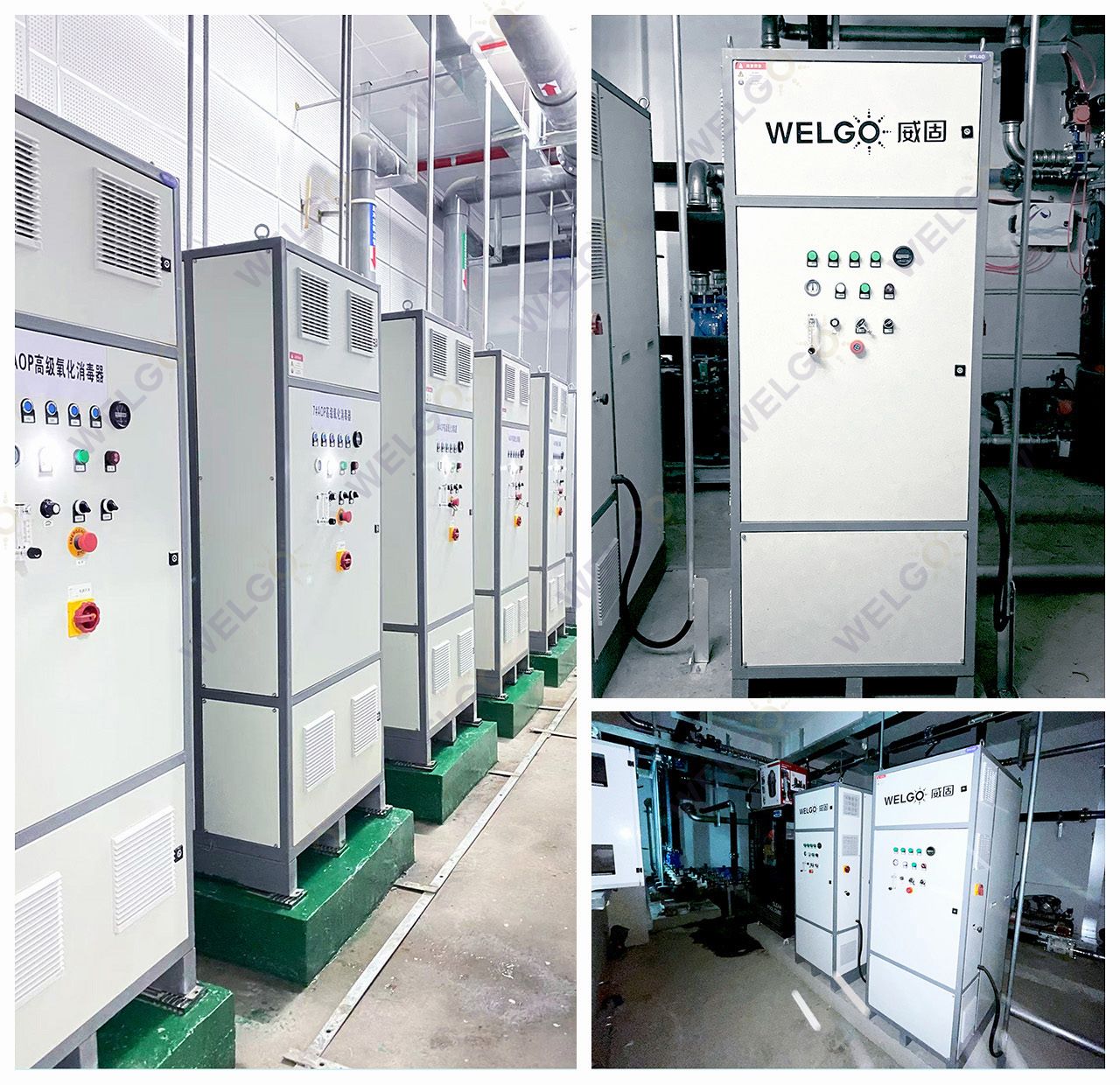

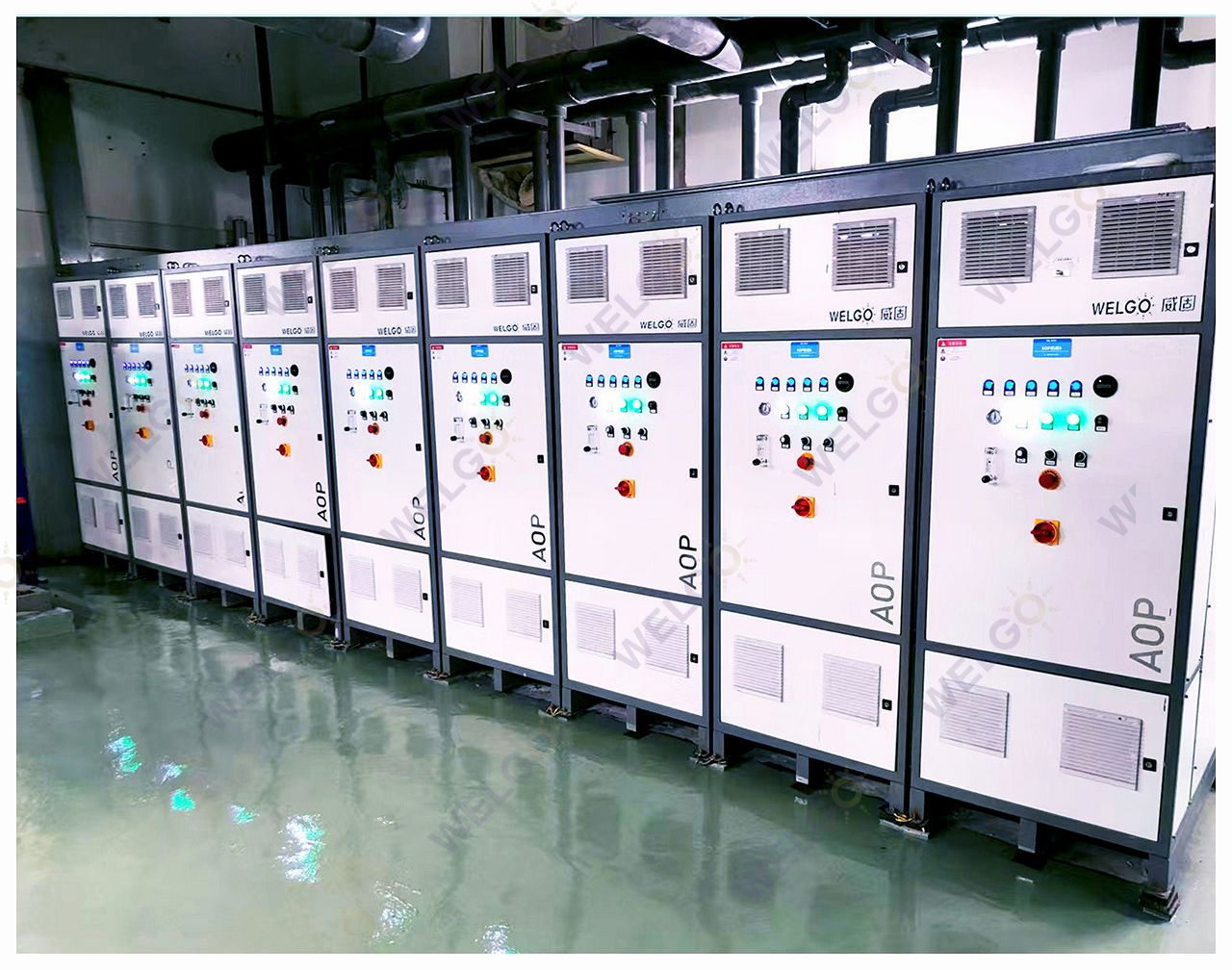

Project Referens
